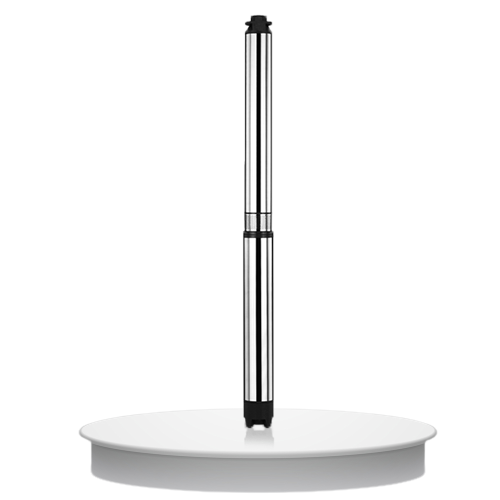

V-3 Submersible Pumpset S.S. Motor Body & S.S. Pump Body With Noryl Impeller Suitable for 80 MM Boredia.
Cooling water circulations.
General Industries and Housing-Complex.
Hospitals and Bungalows.
Gardning and Nurseries.
High-rise building, Housing-complex.
Sprinkler irrigation, Drip irrigation and Gardining.
Booster applications.
Domestic and community water supply.
Landscaping, Servic Stations, Fire fighting
Material Construction of Pumps
| Pump Shaft | Sleeves & Couple | Impeller / Diffuser | Outlet / Suction | Pump Shell | Hardware |
|---|---|---|---|---|---|
| Stainless Steel | Stainless Steel 410 / 431 | GFN-3 Vergine (Noryl) With Stainless Steel Jacket | Cast Iron | Stainless Steel | Stainless Steel |
Material Construction of Motor
| Shaft | Motor Bush | Trust Bearing | Lower/Upper Housing / Base | Stamping | Copper | Stator Shell | Strainer/Cable Guard |
|---|---|---|---|---|---|---|---|
| SS 410 | LTB-4 | SS Counter / Teflon Plate | Cast Iron | C.R.N.G.O.-M-45 Grade | Special EC Grade As Per IS Standards | Stainless Steel | Stainless Steel |
Operating Limits
| Power Range | Speed | Discharge | Head Range | Per Stage Head | Single Phase |
|---|---|---|---|---|---|
| Single Phase | 2800 RPM | 7 LPM - 15 LPM | 15 MTR - 96 MTR | 15 Ft. | 0.5 HP to 2 HP /220V, 50Hz AC |
