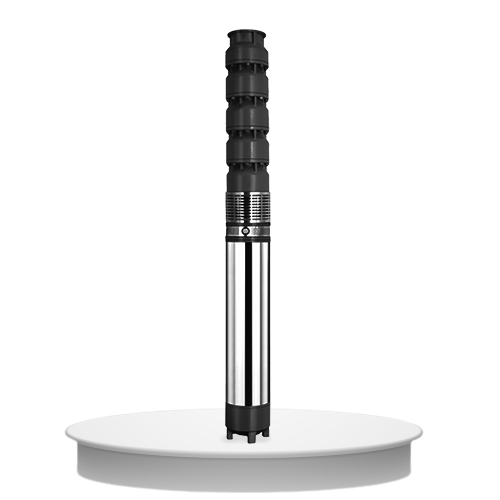

V-6 Submersible Pumpset S.S. Body & C.I. Bowl Made By Graded Casting & Nylon-66 Impeller with S.S. Neck Ring(Suitable for 150mm Bore Dia.)
Cooling water circulations.
General Industries and Housing-Complex.
Hospitals and Bungalows.
Gardning and Nurseries.
High-rise building, Housing-complex.
Sprinkler irrigation, Drip irrigation and Gardining.
Booster applications.
Domestic and community water supply.
Landscaping, Servic Stations, Fire fighting
Material Construction of Pumps
| Pump Shaft | Bearing Bush | Sleeves & Couple | SS Strip | Diffuser | Impeller | Outlet / Suction | Cable Guard | Hardware |
|---|---|---|---|---|---|---|---|---|
| Stainless Steel | Leaded Tin Bronze | Stainless Steel 410 / 431 | - | Cast Iron | Stainless Steel 410 | Cast Iron | - | Stainless Steel |
Material Construction of Motor
| Part Name | Shaft | Bearing Bush | Sleeves | Trust Bearing | Lower/Upper Housing / Base / Connection Piece | Copper | Stamping | Stator Shell |
|---|---|---|---|---|---|---|---|---|
| Materials | SS 431 / SS 410 | Leaded Tin Bronze | Stainless Steel 431 / 410 | Stainless Steel Seagment & Carbon Plate | Cast Iron | Special EC Grade As Per IS Standards | C.R.N.G.O.-M-45 Grade | Stainless Steel |
Operating Limits
| Power Range | Speed | Outlet Size | Discharge | Head Range | Per Stage Head | Three Phase |
|---|---|---|---|---|---|---|
| Single Phase / Three Phase | 2800 RPM | 2,2.5 | 850 to 150 | 15 LPM to 650 LPM | 50 Ft. | 3.0 HP to 30.0 HP |
