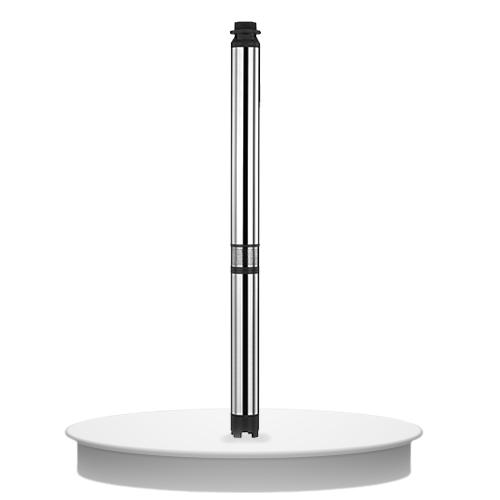

V-4 Single Phase & Three Phase Submersible Pumpset S.S. Motor Body & S.S. Pump Body With Noryl Impeller Suitable for 100 MM Boredia. (Pump OD 96mm)
Cooling water circulations.
General Industries and Housing-Complex.
Hospitals and Bungalows.
Gardning and Nurseries.
High-rise building, Housing-complex.
Sprinkler irrigation, Drip irrigation and Gardining.
Booster applications.
Domestic and community water supply.
Landscaping, Servic Stations, Fire fighting
Material Construction of Pumps
| Pump Shaft | Bearing Bush | Sleeves & Couple | Impeller / Diffuser | Outlet / Suction | Pump Shell | Hardware |
|---|---|---|---|---|---|---|
| Stainless Steel | Leaded Tin Bronze | Stainless Steel 410 / 431 | GFN-3 Vergine (Noryl) With Stainless Steel Jacket | Cast Iron | Stainless Steel | Stainless Steel |
Material Construction of Motor
| Part Name | Shaft | Bearing Bush | Trust Bearing | Lower/Upper Housing / Base | Stamping | Copper | Stator Shell | Strainer/Cable Guard |
|---|---|---|---|---|---|---|---|---|
| Materials | SS 410 | Leaded Tin Bronze | SS Counter / Teflon Plate | Cast Iron | C.R.N.G.O.-M-45 Grade | Special EC Grade As Per IS Standards | Stainless Steel | Stainless Steel |
Operating Limits
| Power Range | Speed | Outlet Size | Discharge | Head Range | Per Stage Head | Single Phase | Three Phase |
|---|---|---|---|---|---|---|---|
| Single Phase / Three Phase | 2800 RPM | 1.5,2,2.5 | 690 to 15 | 10 LPM to 340 LPM | 20 Ft. | 0.5 HP to 3.0 HP | 1.0 HP to 5.0 HP |
